The inside of a storage tank, a mine shaft, a wastewater tunnel-these are places where GPS doesn't just weaken; it simply doesn't exist. No satellite signal can penetrate the earth or pass through a metal enclosure, which has traditionally meant one of two options for time-consuming inspections: send a person in with a handheld device, or leave out the detailed survey entirely. But there's a new solution to that dilemma, and here's how it works- and where it falls short.
Meet the Drone That Doesn't Require GPS to Know Where It Is
Flyability's Elios 3, a collision-tolerant drone designed specifically for confined and hard-to-reach environments, carries a small Ouster LiDAR sensor with Flyability's own SLAM software, FlyAware. The drone's simultaneous localization and mapping system allows it to create a 3D map of its environment, in real time, and locate itself inside that map, without any reliance on GPS or external navigation signals. Depending on the LiDAR payload, survey-grade 3D maps with between 6mm and 1cm resolution can be generated-precise enough to support engineering and other detailed inspection tasks, not just visual references.
How This Technology Works Where Traditional Cameras Don't
A camera-only system would struggle in a featureless concrete tunnel, in total darkness, filled with airborne dust. SLAM-LiDAR is not dependent on ambient light or visual features in order to operate-it directly measures distance, which means that it can effectively map out areas that would be impossible for the drone to navigate visually.
Why This Technology Is Being Adopted Today
It makes a difference specifically in environments like wastewater tunnels, mine shafts, tanks, and industrial vessels: places where GPS simply isn't available and that a camera-based navigation system could easily be thrown off by dust, darkness, or monotonous gray concrete. Sending in someone with a handheld device on a harness, or shutting down a storage tank to drain it for a visual inspection, was the only option available. A drone that can fly itself into those spaces without reliance on satellite signals and generate a 3D model on the fly, totally eliminates the need for humans to directly access those hazardous locations.
The Same Problem, With Another Solution
If this all sounds familiar, that's because it's the same fundamental problem we discussed recently in our article about what happens to your survey data when GPS fails mid-flight. That article centered on terrestrial GNSS jamming and spoofing, where the loss of signal comes from an attack on the satellite infrastructure or other abnormal anomaly-and the fallback is better supporting infrastructure or backup telemetry signals. You don't have to go far for a related scenario: at the other end of the spectrum is the case of working in an enclosed space, where the loss of position signal isn't an attack, but simply a given condition of the environment. SLAM-based LiDAR mapping is a purpose-designed solution for that guaranteed lack of signal. (Note that the accuracy figures referenced here- 6 mm to 1cm-are actually more precise than many outdoor GNSS-denied backup systems can provide, because the drone has a fixed, nearby point cloud in range of its LiDAR.)
A Similar Expansion: Too Much Open Space, Rather Than Not Enough

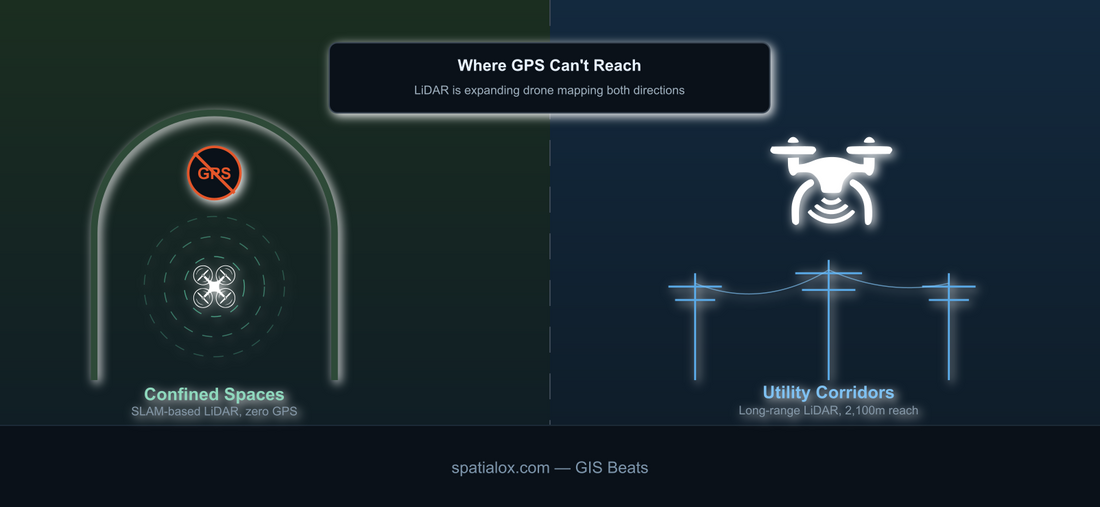

Interestingly, while LiDAR is converging to meet in the middle of these two use cases, one of the most noticeable recent developments is that LiDAR is heading in the opposite direction-increasing range rather than decreasing it. GeoCue has been expanding the TrueView product family, including the launch of a new device called TrueView 550-a LiDAR scanning platform that combines an Ouster-based sensor with dual 20-megapixel mapping cameras and the option of GeoCue's own TrueNav integrated, or the Applanix APX-20 integrated, navigation system, giving it a maximum range of 2,100 meters. This version of the platform was targeted at utility and infrastructure applications, especially long utility corridors and power lines. Ouster's Rev8 LiDAR sensor was announced at INTERGEO 2026, described as the first in the industry to combine color and 3D data in a single sensor, with increased range, precision, and resolution over previous generations. Utility and industrial corridor work are exactly the environments that are being transformed by this new sensor, and it just so happens that the other end of the LiDAR use-case spectrum is being similarly advanced-by virtue of necessity-for mapping tight, enclosed spaces.
Frequently Asked Questions
Can the LiDAR+SLAM approach to mapping fully replace a conventional outdoor survey using GNSS?
No. They're different tools designed to solve different problems: traditional survey-grade workflows still have a role in open-air sites and locations with satellite coverage. SLAM-guided LiDAR is specifically for environments where that satellite signal simply isn't available.
Is a confined-space drone mapping survey more accurate than sending a human with a handheld scanner?
For many applications, the answer is yes: survey-quality results of around 6mm to 1cm are comparable to or better than handheld devices, and don't require a person to put themselves at risk inside a confined space.
What kind of training and experience does a team need in order to operate this equipment?
It depends on the platform and payload configuration, but the requirements tend to be lower than for a traditional confined-space surveyor, since the pilot is not entering the hazardous environment but controlling the drone from outside it.
What Questions Should You Ask Before Using This for Your Projects?
- What's the actual accuracy specification for the exact payload configuration quoted? This number can vary significantly by platform and payload type, and is specific to a particular pair of software and hardware configurations.
- What is the actual performance of the drone in dust- and moisture-heavy conditions? Manufacturer-published specs typically reflect a clean environment-what you can expect in a true industrial setting might be quite different.
- How will the equipment handle a loss of tracking and execute return-to-home if the drone loses SLAM tracking mid-flight? Since no GPS or GNSS fix is available within the target environment, it's worth confirming the built-in procedure for returning to its takeoff point if the SLAM mapping is lost.
What to Consider If You're Looking to Use This for Your Business
Whether you are mapping industrial tanks and shafts or long utility corridors, the underlying question is the same: is GPS genuinely unavailable in your environment, or is it merely unreliable? Confined spaces guarantee no signal at all, which is exactly what drone imaging and processing built around SLAM-based LiDAR is designed to solve. If your team instead needs to survey long, open utility corridors, the other end of that same technology trend is a sensor capable of handling that kind of distance.
